Bale Spikes
All products in our Bale Spike Range are based on the same Heavy Duty principal design, with a durable box section frame, Kverneland style tines and tine bushes. Brackets are included on all models. If you require extra bushes in the frame work, as shown in some pictures above, please ask.
To find out where your nearest Cherry Products Dealership is click here.
Brackets Included
| Part No. | Will Handle - | Width | Height | Depth | £ RRP |
| CH27 | 1 x Round Bale | 1.27m (4'2") | 0.81m (2'8") | 0.98m (3'3") | £700 |
| CH27A5 | 2 x 5' Round Bales | 1.52m (5') | 0.81m (2'8") | 0.98m (3'3") | £965 |
| CH27B | 1 x Rectangular Bale | 1.52m (5') | 0.81m (2'8") | 0.98m (3'3") | £950 |
| CH27AE* | 2 x Round Bales / 3 x Rectangular Bales (upto 800mm high each) | 1.71m (5'7") | 1.26m (4'2")* | 0.98m (3'3") | £1100 |
| CH27BE* | 3 x Rectangular Bales (upto 800mm high each) | 1.71m (5'7") | 1.26m (4'2")* | 0.98m (3'3") | £1050 |
| CH27AEF* | 2 x Round Bales / 3 x Rectangular Bales (upto 800mm high each) Tines Hydraulically adjustable | 1.68m (5'6") | 1.52m (5') | 0.98m (3'3") | £1700 |
*Please note that the part numbers with 'E' and 'EF' on the end have an adjustable and removable extension, which closed adds 0.44m to the height shown in the table above and fully extended adds 0.90m to the height shown in the table above.*
On model 'CH27AEF' the tines can be hydraulically adjusted up and down to allow for an easy switch between working tines and tines that are safe to travel along roads with other traffic.
Features
Tines, bushed in the main frame for secure spiking and stacking of bales. 980mm as standard with 680mm anti rotation tines on round bale models.
- Weld on Brackets, included on all models as standard. Don't get caught out by cheaper alternatives where brackets are charged afterwards and only bolted on
- Variety of Models, each Bale Spike we offer has been specifically designed and built to suit certain bale types and quantities to be moved.
- Heavy Duty Frame, purpose built for the bracket type, bale type and consistant relability.
- Hydraulically Adjustable, on model 'CH27AEF*' the tines can be hydraulically adjusted to the upright position to allow for safe travel along roads.
Parts
| Part Number | Description | £RRP |
CT03/3 | 980mm long, Straight KV Type Tine W/M28 Nut | £55 |
CT03/5 | 680mm Long, Straight KV Type Tine W/M20 Nut | £40 |
C1B | Conus 1 Bush 33.5mm Ø | £15 |
C2B | Conus 1 Bush 41mm Ø | £20 |
| CP03 | Hydraulic Cylinder(for the CH27AEF) | £200 |
| CT13 | Check Valve | £110 |

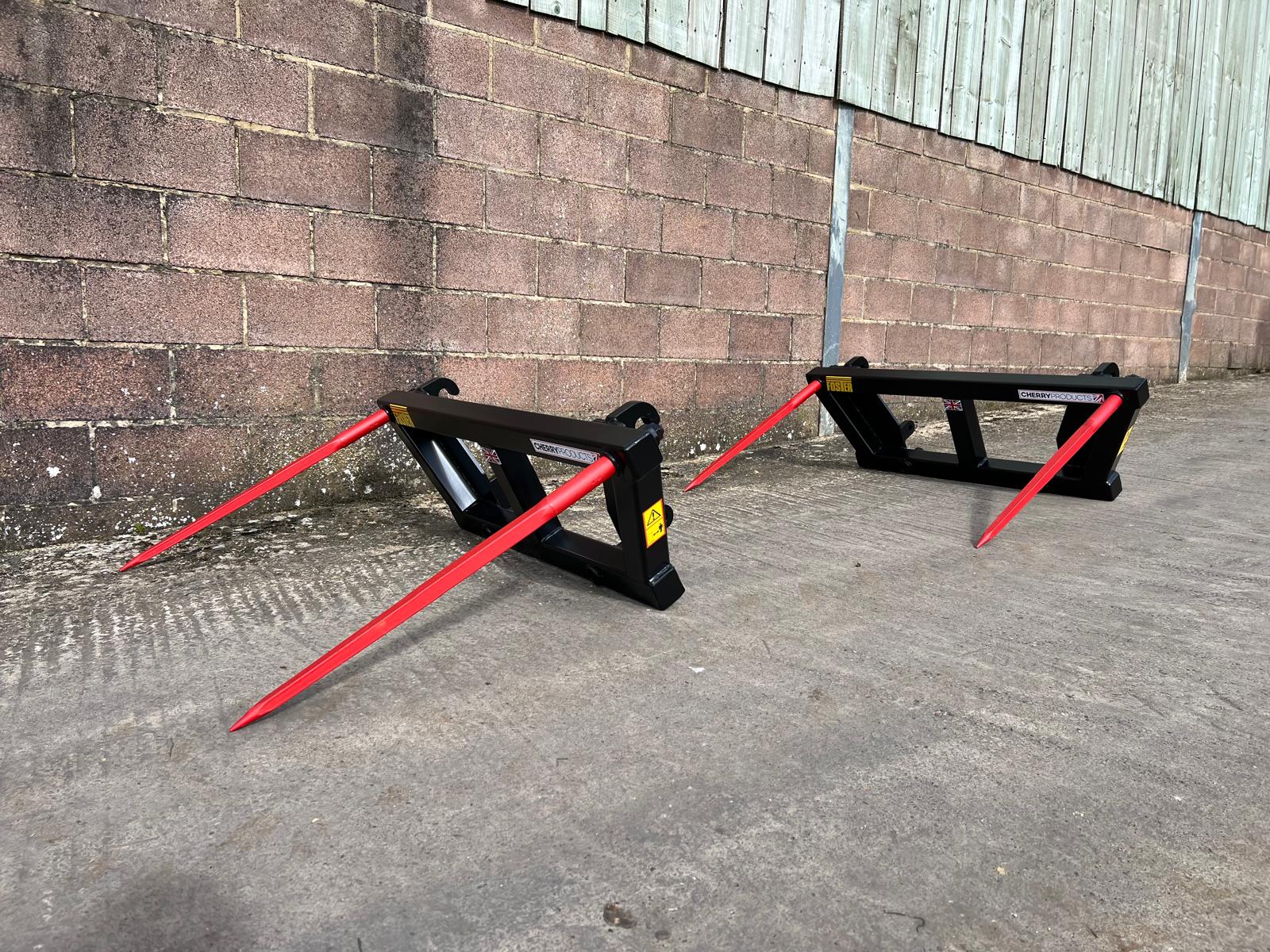

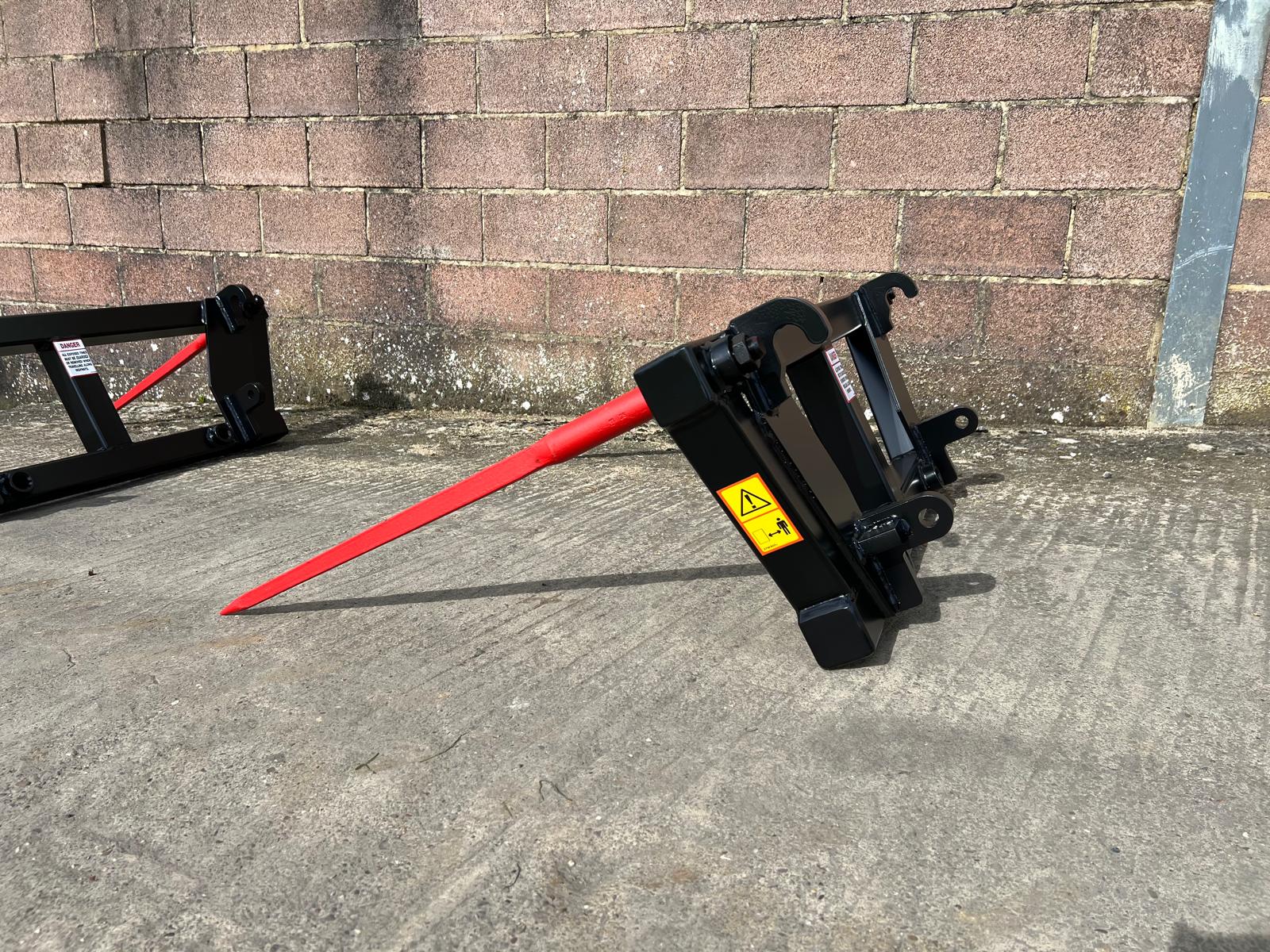

Gallery
