Grain Pusher

Brackets Included

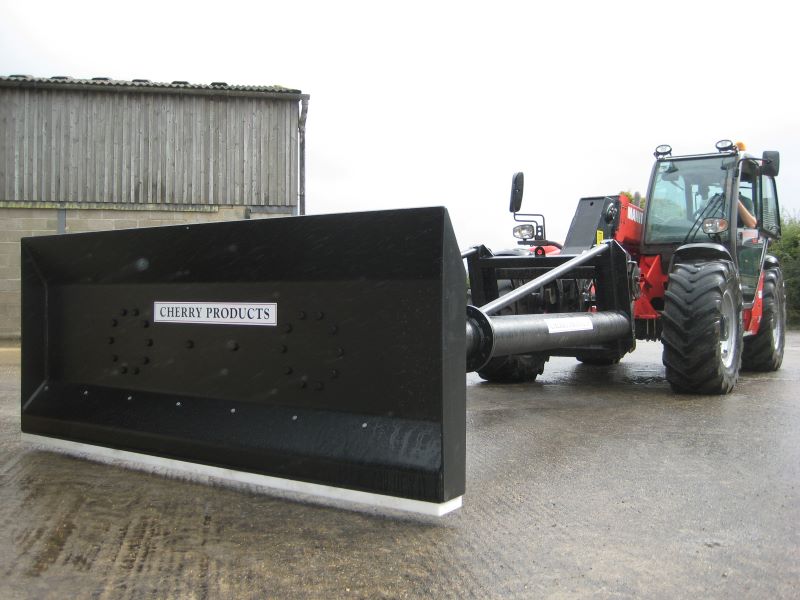

The new Cherry Grain Pusher is built on an over specification, heavy duty design, providing many benefits throughout. A key focus of the design is the circular tube frame which reduces the number of grain traps; keeping grain in the store and not the yard. If future length is required, a bolt on extension can be added to the section frame for a relatively low cost. All models come with a nylon edge (for floor and blade protection) as standard. The large 8' wide blade offers the very best productivity possible.

To find out where your nearest Cherry Products Dealership is click here


Part No.
Width
Height
Length
Kilos

CGP08
2450mm (8')
1030
2.40m (8')
514

CGP10
2450mm (8')
1030
3.05m (10')
642

CGP12
2450mm (8')
1030
3.66m (12')
770

CGP14
2450mm (8')
1030
4.26m (14')
898

CGP16
2450mm (8')
1030
4.87m (16')
1028

Part No.
Description

EXT02
2 ft long bolt on frame extension (c/w fitting bolts)

EXT04
4 ft long bolt on frame extension (c/w fitting bolts)

EXT06
6 ft long bolt on frame extension (c/w fitting bolts)

EXT08
8 ft long bolt on frame extension (c/w fitting bolts)

Grain Pusher

Grain PusherGrain Pusher



















Grain PusherGrain Pusher

  • Large Blade Face, 8ft wide, designed to reduce grain spilling over the top of the pusher
  • Section Frame, blade and frame easily bolt together. Allows for individual parts to be bought if changing machine or if future length is required
  • Nylon Edge, for the protection of wooden floors and blade, included as standard
  • Circular Frame, minimises grain traps – keeping grain in the grain store and not in the yard
  • Delivery options, either ready assembled to go or as sections for manual assembly (keeps delivery costs down)
